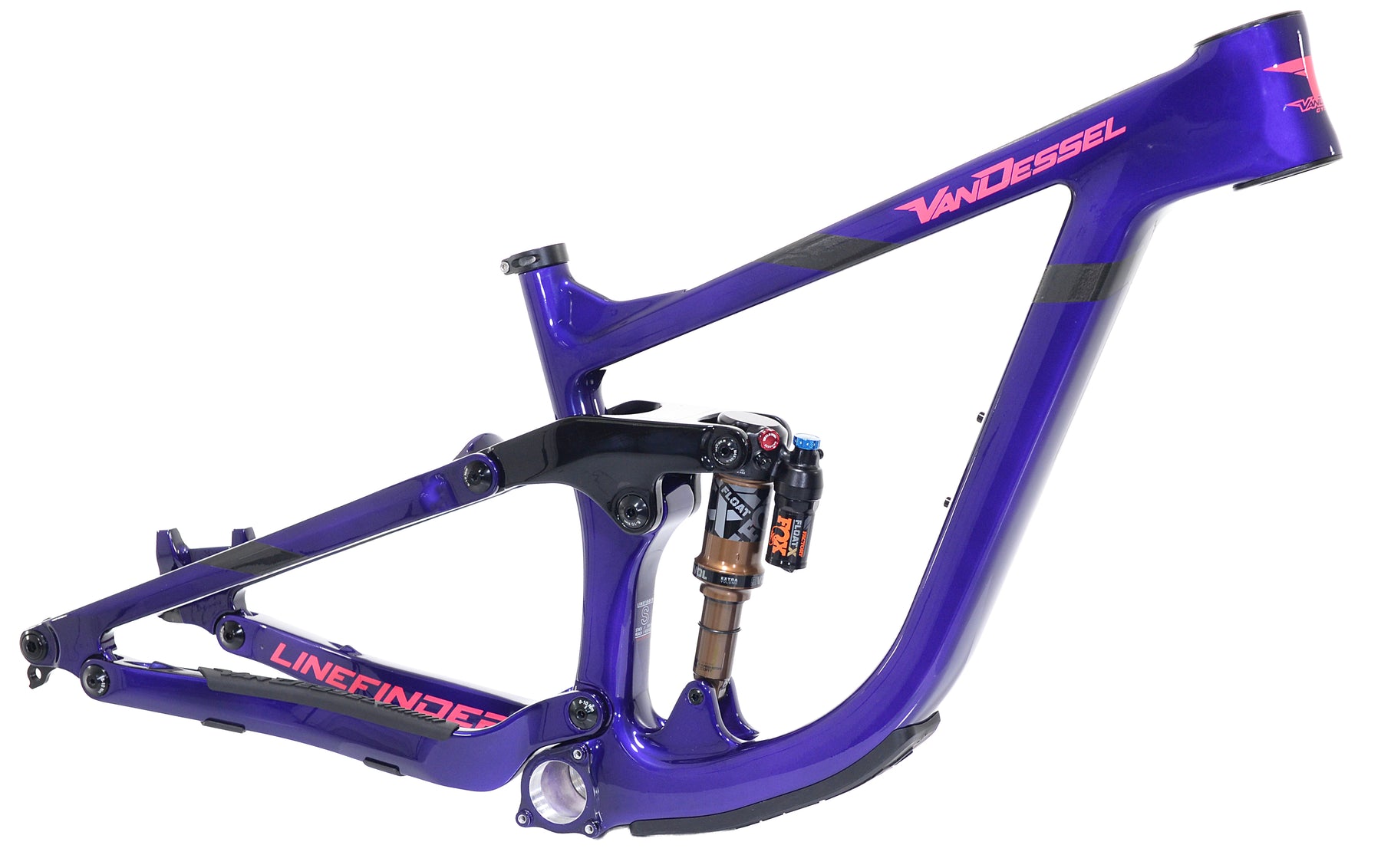

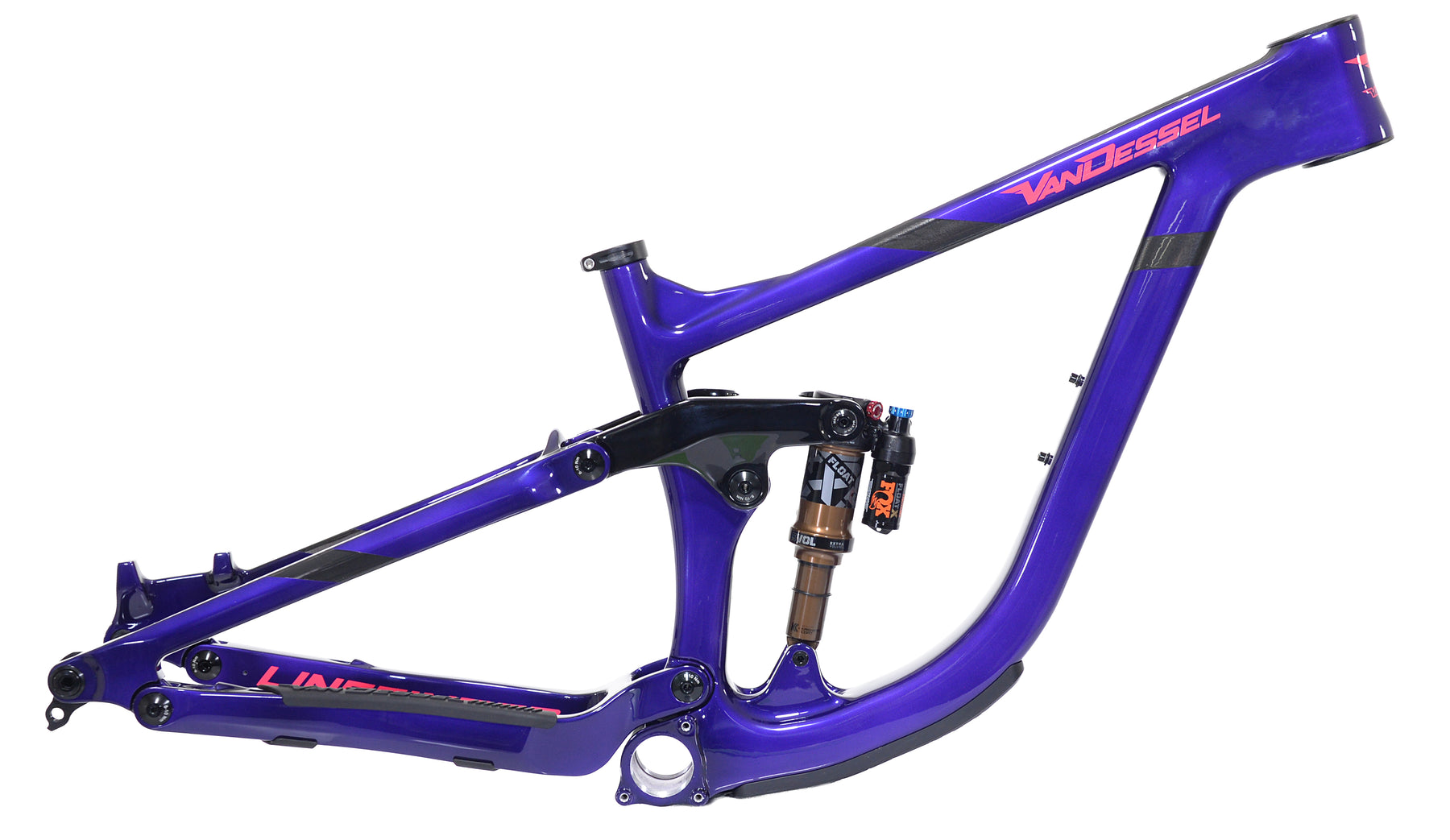

Van Dessel™ Linefinder Frame – Precision. Control. Versatility.

The Van Dessel Linefinder is built for riders who demand efficiency on the climbs and confidence on the descents. With modern geometry, a responsive suspension platform, and a premium Fox Float X Factory rear shock, it’s ready for whatever the trail throws your way.

120mm Rear Travel with Fox Float X Factory (185x50)
Balanced, efficient travel with adjustable damping for aggressive trail riding and plush performance.

Horst Link 4-Bar Suspension + Fox Float X
Fully active under all conditions — including braking — for maximum traction, control, and smooth rebound.

130mm Front Travel (compatible up to 140mm)
Versatile setup for tackling everything from technical singletrack to all-day epics.

29x2.4" Tire Clearance
Confident grip and smooth rollover for modern trail tires.

Integrated Cable Routing
Clean, quiet cockpit with easy maintenance access.

Adjustable Reach
Custom-fit geometry to match your style and terrain.

Included: Frame, Fox Float X Factory rear shock, rear thru axle, headset, seat clamp
Not Included: Bottom bracket or other parts required to complete build

NOTE: Requires T47 bottom bracket

Ready to build your dream trail bike? The Linefinder frameset is the perfect foundation.

$2,299.00 $899.00

[{"id":44669049241772,"title":"ELECTRIC PURPLE \/ SMALL","option1":"ELECTRIC PURPLE","option2":"SMALL","option3":null,"sku":"F01170S1","requires_shipping":true,"taxable":true,"featured_image":{"id":40350496489644,"product_id":8305369481388,"position":1,"created_at":"2025-08-15T06:56:16-04:00","updated_at":"2025-08-15T06:56:18-04:00","alt":null,"width":3622,"height":2278,"src":"\/\/vandesselcycles.com\/cdn\/shop\/files\/LinefinderPrplSmlA.jpg?v=1755255378","variant_ids":[44669049241772]},"available":true,"name":"LINEFINDER  |  FRAMESET | FOX FLOAT X SHOCK - ELECTRIC PURPLE \/ SMALL","public_title":"ELECTRIC PURPLE \/ SMALL","options":["ELECTRIC PURPLE","SMALL"],"price":89900,"weight":6804,"compare_at_price":229900,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":31533571932332,"position":1,"preview_image":{"aspect_ratio":1.59,"height":2278,"width":3622,"src":"\/\/vandesselcycles.com\/cdn\/shop\/files\/LinefinderPrplSmlA.jpg?v=1755255378"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

{"id":44669049241772,"title":"ELECTRIC PURPLE \/ SMALL","option1":"ELECTRIC PURPLE","option2":"SMALL","option3":null,"sku":"F01170S1","requires_shipping":true,"taxable":true,"featured_image":{"id":40350496489644,"product_id":8305369481388,"position":1,"created_at":"2025-08-15T06:56:16-04:00","updated_at":"2025-08-15T06:56:18-04:00","alt":null,"width":3622,"height":2278,"src":"\/\/vandesselcycles.com\/cdn\/shop\/files\/LinefinderPrplSmlA.jpg?v=1755255378","variant_ids":[44669049241772]},"available":true,"name":"LINEFINDER  |  FRAMESET | FOX FLOAT X SHOCK - ELECTRIC PURPLE \/ SMALL","public_title":"ELECTRIC PURPLE \/ SMALL","options":["ELECTRIC PURPLE","SMALL"],"price":89900,"weight":6804,"compare_at_price":229900,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":31533571932332,"position":1,"preview_image":{"aspect_ratio":1.59,"height":2278,"width":3622,"src":"\/\/vandesselcycles.com\/cdn\/shop\/files\/LinefinderPrplSmlA.jpg?v=1755255378"}},"requires_selling_plan":false,"selling_plan_allocations":[]}

FRAME SIZE	SMALL
SEAT TUBE LENGTH	390mm
EFFECTIVE TOP TUBE LENGTH	577.8mm
HEAD TUBE LENGTH	90mm
CHAINSTAY LENGTH	430MM
EFFECTIVE SEAT TUBE ANGLE	75.1°
HEAD TUBE ANGLE	65.5°
WHEELBASE	1153MM
FORK OFFSET	44MM
BB DROP	32MM
FRONT CENTER	724MM
STACK	605mm
REACH	420/430mm
ACTUAL SEAT TUBE ANGLE	68°
ESTIMATED BB HEIGHT	340mm
CRANK LENGTH	170mm

SM

RECOMMENDED HEIGHT:

5'0" - 5'5"

MD

RECOMMENDED HEIGHT:

5'5" - 5'10"

LG

RECOMMENDED HEIGHT:

5'9" - 6'1"

XL

RECOMMENDED HEIGHT:

6'0" - 6'5"

FRAME SIZE	MEDIIUM
SEAT TUBE LENGTH	420mm
EFFECTIVE TOP TUBE LENGTH	600mm
HEAD TUBE LENGTH	100mm
CHAINSTAY LENGTH	430MM
EFFECTIVE SEAT TUBE ANGLE	75.1°
HEAD TUBE ANGLE	65.5°
WHEELBASE	1177.5mm
FORK OFFSET	44mm
BB DROP	32MM
FRONT CENTER	748mm
STACK	615mm
REACH	440/450mm
ACTUAL SEAT TUBE ANGLE	68°
ESTIMATED BB HEIGHT	340mm
CRANK LENGTH	170mm

FRAME SIZE	LARGE
SEAT TUBE LENGTH	450mm
EFFECTIVE TOP TUBE LENGTH	628mm
HEAD TUBE LENGTH	110mm
CHAINSTAY LENGTH	430MM
EFFECTIVE SEAT TUBE ANGLE	75.1°
HEAD TUBE ANGLE	65.5°
WHEELBASE	1207mm
FORK OFFSET	44mm
BB DROP	32mm
FRONT CENTER	777mm
STACK	625mm
REACH	465/475mm
ACTUAL SEAT TUBE ANGLE	68°
ESTIMATED BB HEIGHT	340mm
CRANK LENGTH	170mm

FRAME SIZE	EXTRA LARGE
SEAT TUBE LENGTH	480mm
EFFECTIVE TOP TUBE LENGTH	655mm
HEAD TUBE LENGTH	120mm
CHAINSTAY LENGTH	430MM
EFFECTIVE SEAT TUBE ANGLE	75.1°
HEAD TUBE ANGLE	65.5°
WHEELBASE	1266MM
FORK OFFSET	44MM
BB DROP	32MM
FRONT CENTER	806.5MM
STACK	635
REACH	490/500MM
ACTUAL SEAT TUBE ANGLE	68°
ESTIMATED BB HEIGHT	340mm
CRANK LENGTH	170mm
