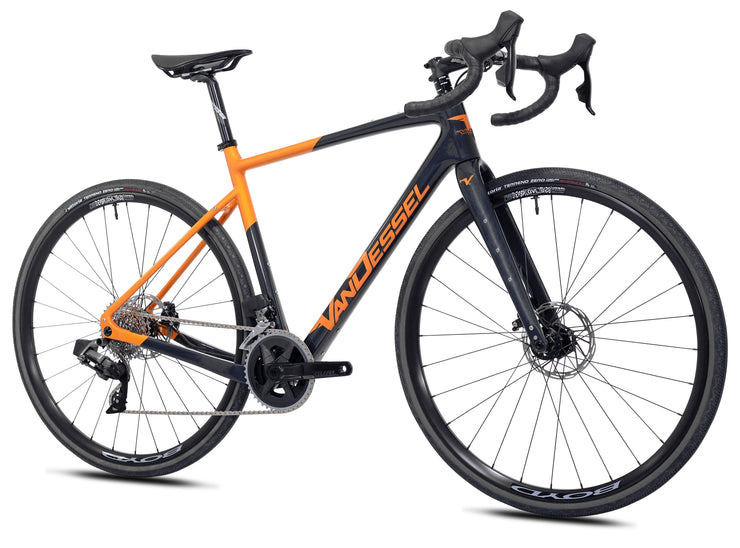

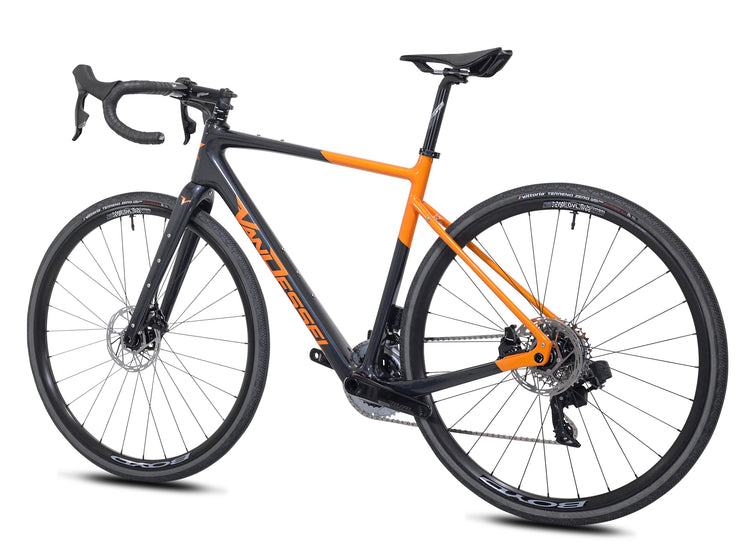

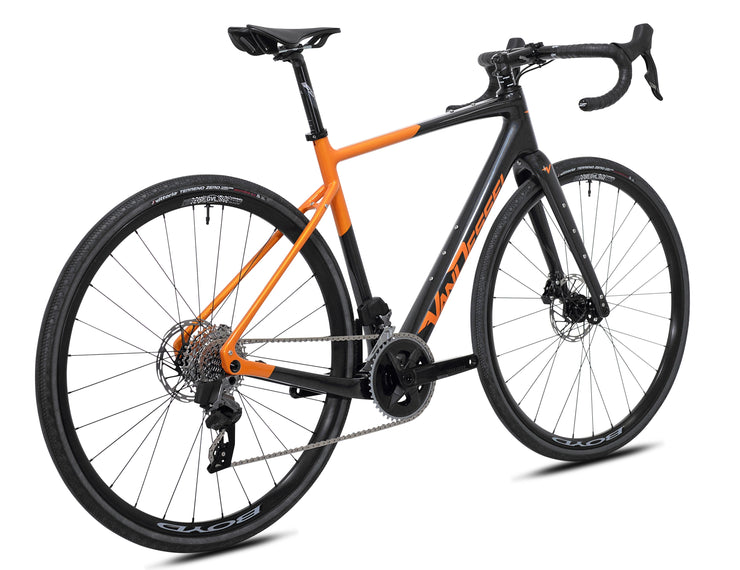

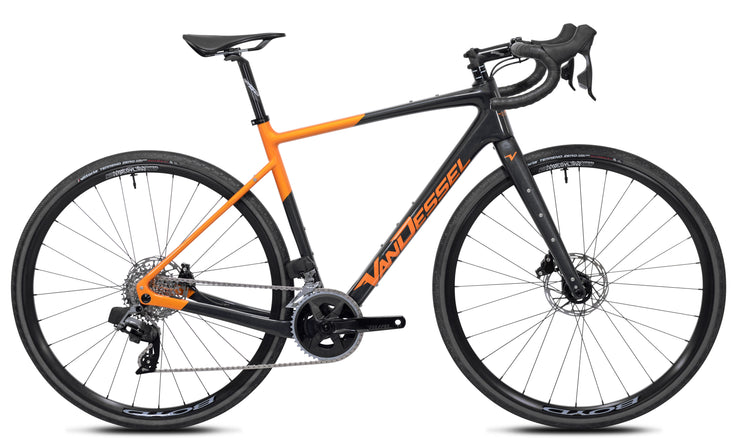

RANGE ROAMER, FROM POINT A TO Z AND EVERYWHERE INBETWEEN!
The frame makes use of carbon fiber's ability to create a shape that provides a stout platform for stomping up the hills and precise steering but blends those attributes with materials needed to deliver a compliant and rewarding ride.
The frame design uses fully integrated cable routing for a clean cockpit set up and improved chassis strength and stiffness with no cable entry holes in the high stress head tube area. The frame is molded using size specific layups over an expanded polystyrene mold. Each frame uses its own blend of high modulus fibers for strength and intermediate and standard mod. fibers for durability and compliance. Frame stiffness is tuned for each size.
PICK YOUR BUILD
All Van Dessel complete bicycles are assembled in our Fairfield, NJ facility.
Please allow 4 weeks from time of order to the time your bike is ready to ship.
MOUNTING POINTS
FENDER, RACK AND BOTTLES
INTEGRATED
CABLE ROUTING
THREADED
T47 BOTTOM BRACKET
AERO PROFILE
TUBE SHAPES
BUILD KIT
SRAM RIVAL XPLR AXS
FRAME
VDC RANGE ROAMER CARBON
FORK
VDC GRAVEL CARBON
HANDLEBAR
ZIPP SERVICE COURSE
STEM
ZIPP SERVICE COURSE
SEATPOST
ZIPP SERVICE COURSE 20SB
SADDLE
SELLE ITALIA SUPERFLOW X
BAR TAPE
VDC BLACK
SHIFTER
SRAM RIVAL AXS
REAR DERAILLEUR
SRAM RIVAL XPLR AXS
FRONT DERAILLEUR
N/A
CRANKSET
SRAM RIVAL XPLR 40T
CASSETTE
SRAM XG1250 10-44T
CHAIN
SRAM RIVAL
BRAKES
SRAM RIVAL
BRAKE ROTORS
SRAM PACELINE 160MM CL
WHEELSET
BOYD GVL
FRONT HUB
BOYD QUEST CL 28H
REAR HUB
BOYD QUEST CL 32H
RIMS
BOYD GVL 25MMIRW
SPOKES
PILLAR WING 20
FRONT TIRE
VITTORIA TORRENO DRY 700X38C
REAR TIRE
VITTORIA TORRENO DRY 700X38C
HEADSET
FSA ACR / ICR 1.5
BOTTOM BRACKET
SRAM DUB T47
BUILD KIT
SRAM RIVAL WIDE AXS
FRAME
VDC RANGE ROAMER CARBON
FORK
VDC GRAVEL CARBON
HANDLEBAR
ZIPP SERVICE COURSE
STEM
ZIPP SERVICE COURSE
SEATPOST
ZIPP SERVICE COURSE 20SB
SADDLE
SELLE ITALIA SUPERFLOW X
BAR TAPE
VDC BLACK
SHIFTER
SRAM RIVAL AXS
REAR DERAILLEUR
SRAM RIVAL AXS
FRONT DERAILLEUR
SRAM RIVAL WIDE AXS
CRANKSET
SRAM RIVAL WIDE 30/43T
CASSETTE
SRAM XG1250 10-36T
CHAIN
SRAM RIVAL
BRAKES
SRAM RIVAL
BRAKE ROTORS
SRAM PACELINE 160MM CL
WHEELSET
BOYD GVL
FRONT HUB
BOYD QUEST CL 28H
REAR HUB
BOYD QUEST CL 32H
RIMS
BOYD GVL 25MMIRW
SPOKES
PILLAR WING 20
FRONT TIRE
VITTORIA TORRENO zero 700X35C
REAR TIRE
VITTORIA TORRENO zero 700X35C
HEADSET
FSA ACR / ICR 1.5
BOTTOM BRACKET
SRAM DUB T47
BUILD KIT
CAMPAGNOLO EKAR
FRAME
VDC RANGE ROAMER CARBON
FORK
VDC GRAVEL CARBON
HANDLEBAR
FSA SL-K COMPACT CARBON
STEM
FSA AC-R
SEATPOST
FSA ENERGY SB20
SADDLE
SELLE ITALIA SUPERFLOW X
BAR TAPE
VDC BLACK
SHIFTER
CAMPAGNOLO EKAR
REAR DERAILLEUR
CAMPAGNOLO EKAR
FRONT DERAILLEUR
N/A
CRANKSET
CAMPAGNOLO EKAR 40T
CASSETTE
CAMPAGNOLO EKAR 13SPD 10-44T
CHAIN
CAMPAGNOLO EKAR C13
BRAKES
CAMPAGNOLO EKAR
BRAKE ROTORS
CAMPAGNOLO EKAR 160MM
WHEELSET
FULCRUM RAPID RED 300
FRONT HUB
FULCRUM DISC
REAR HUB
FULCRUM DISC
RIMS
FULCRUM 24MM IRW
SPOKES
FULCRUM STAINLESS STEEL
FRONT TIRE
VITTORIA TORRENO DRY 700X38C
REAR TIRE
VITTORIA TORRENO DRY 700X38C
HEADSET
FSA ACR / ICR 1.5
BOTTOM BRACKET
CAMPAGNOLO EKAR T47
WHEEL SIZE
700c
Max Chainring
52/36T DOUBLE OR 50T 1X - 45.5MM CHAINLINE
Seatpost Diameter
27.2MM
Seat Clamp
31.8MM
BB Set
68MM T47
Headset
FSA ACR / ICR 1.5"
Maximum Tire Clearance
700C X 45MM OR 650B X 56C
REAR AXLE
12MM X 142MM
REAR DISC
140MM FLAT MOUNT, 160MM MAX
DERAILLEUR HANGER
VAN DESSEL AR-1.0
FRAME SIZE
49CM
SEAT TUBE LENGTH
470MM
EFFECTIVE TOP TUBE LENGTH
515MM
HEAD TUBE LENGTH
105mm
CHAINSTAY LENGTH
435MM
EFFECTIVE SEAT TUBE ANGLE
74.5°
HEAD TUBE ANGLE
70.5°
WHEELBASE
1010MM
FORK OFFSET
50MM
BB DROP
76MM
FRONT CENTER
587MM
STACK
536MM
REACH
366MM
CRANK LENGTH
170MM
bar width
40cm
stem length
90mm
FRAME SIZE
52CM
SEAT TUBE LENGTH
500MM
EFFECTIVE TOP TUBE LENGTH
535MM
HEAD TUBE LENGTH
125MM
CHAINSTAY LENGTH
435MM
EFFECTIVE SEAT TUBE ANGLE
74°
HEAD TUBE ANGLE
71°
WHEELBASE
1022MM
FORK OFFSET
50MM
BB DROP
76MM
FRONT CENTER
598MM
STACK
556MM
REACH
375MM
CRANK LENGTH
170MM
bar width
42cm
stem length
90mm
FRAME SIZE
54CM
SEAT TUBE LENGTH
520MM
EFFECTIVE TOP TUBE LENGTH
553MM
HEAD TUBE LENGTH
140MM
CHAINSTAY LENGTH
435MM
EFFECTIVE SEAT TUBE ANGLE
73.5°
HEAD TUBE ANGLE
71°
WHEELBASE
1031MM
FORK OFFSET
50MM
BB DROP
76MM
FRONT CENTER
607MM
STACK
572MM
REACH
384MM
CRANK LENGTH
172.5MM
bar width
42cm
stem length
100mm
FRAME SIZE
56CM
SEAT TUBE LENGTH
540MM
EFFECTIVE TOP TUBE LENGTH
567MM
HEAD TUBE LENGTH
155MM
CHAINSTAY LENGTH
435MM
EFFECTIVE SEAT TUBE ANGLE
73.5°
HEAD TUBE ANGLE
72°
WHEELBASE
1040MM
FORK OFFSET
50MM
BB DROP
76MM
FRONT CENTER
617MM
STACK
588MM
REACH
393MM
CRANK LENGTH
172.5MM
bar width
44cm
stem lenght
110cm
FRAME SIZE
58CM
SEAT TUBE LENGTH
560MM
EFFECTIVE TOP TUBE LENGTH
580MM
HEAD TUBE LENGTH
170MM
CHAINSTAY LENGTH
435MM
EFFECTIVE SEAT TUBE ANGLE
73.5°
HEAD TUBE ANGLE
72°
WHEELBASE
1054MM
FORK OFFSET
50MM
BB DROP
76MM
FRONT CENTER
630MM
STACK
603MM
REACH
402MM
CRANK LENGTH
175MM
bar width
44cm
stem length
120mm
49cm
RECOMMENDED HEIGHT:
4'11" - 5'3"
52cm
RECOMMENDED HEIGHT:
5'3" - 5'6"
54cm
RECOMMENDED HEIGHT:
5'6" - 5'9"
56cm
RECOMMENDED HEIGHT:
5'9" - 6'0"
58cm
RECOMMENDED HEIGHT:
6'0" - 6'5"
The serial number is located underneath the bottom bracket of the bicycle.
All of our bikes and frame sets are engineered and built to be ridden at the highest levels of competition or play. We seal all of our bikes with a 3 year warranty against manufacturer defect in materials or craftsmanship. See warranty details on our Register Your Bike page.
You can buy any of our products directly from our website - shipped directly to your home or local bike shop. Alternatively, you can purchase our bikes in store at select retailers. Visit our dealer locator to find your local Van Dessel retailer:
